• Control range: -45~ 110

• Input Power: DC 12V

• Resolution: -9.9-99.9 0.1 , other temperature ranges 1

• Measuring inputs: NTC (10K 0.5%) Waterproof sensor

• Length of the cable with sensor : 32cm, the length of sensor: 2cm

• Measurement accuracy: 0.1

• Output range: 1 way 10A relay

• Control accuracy: 0.1

• Environmental requirements: -10-60 , humidity 20% -85%

• Hysteresis accuracy: 0.1

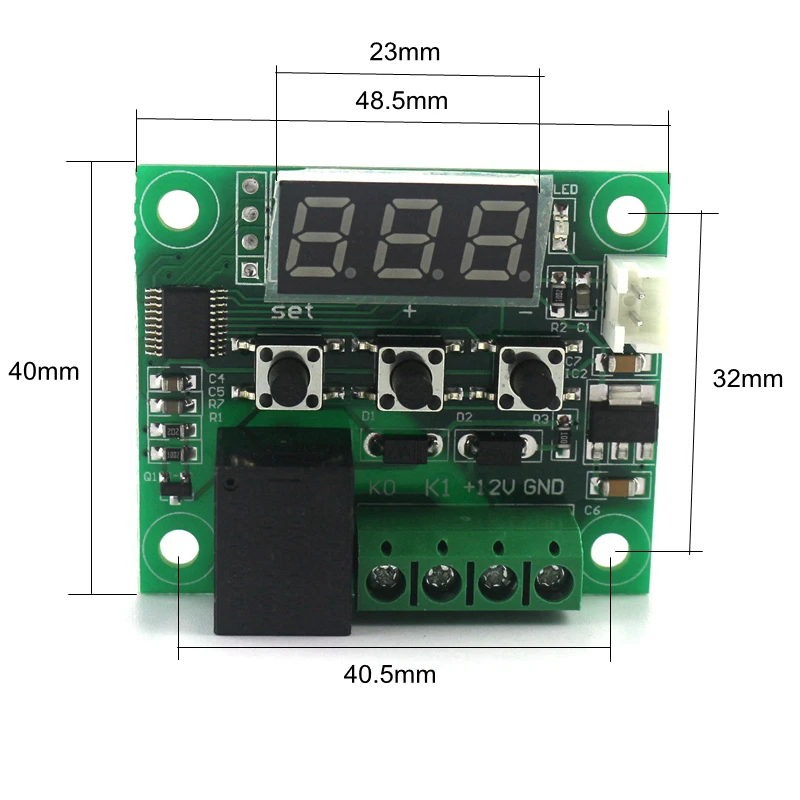

• Size: 48*40mm

• Refresh rate: 0.5S

• Power consumption: Static current: <= 35MA,attract current:<= 65MA

• Temperature protection :0-110

• Display Type: 0.28 ” three digital display tube


• Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + – to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!

• Lights, LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection.

• Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + – toggle P0 … P8 long press SET or 10 seconds of no key activity confirmed their return to the controller


Off state, long press + – boot to restore the factory settings

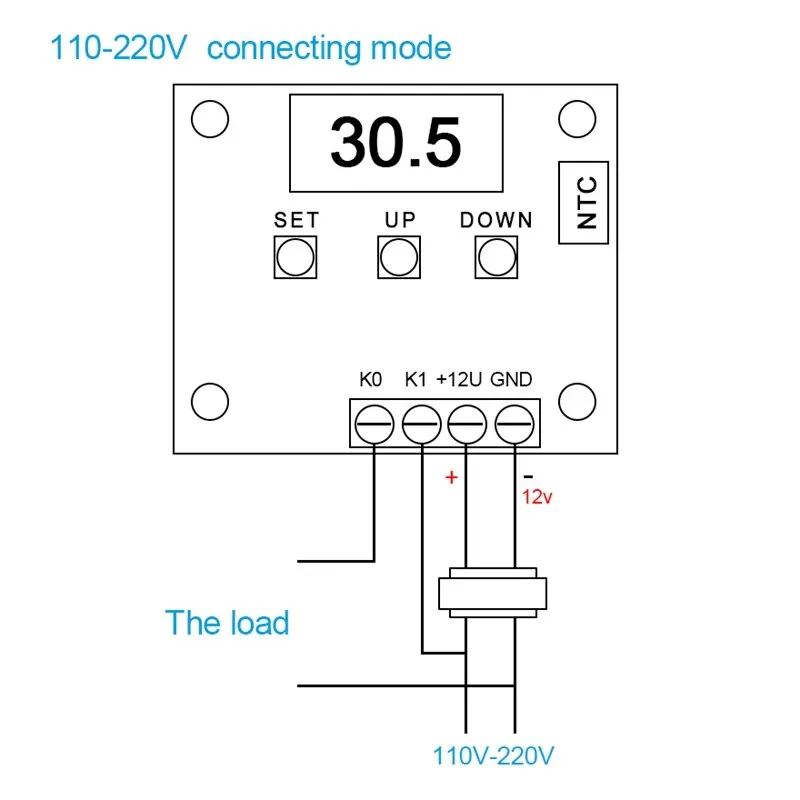

• There is no any output voltage of the controller , it is like a switch , you need to connect a power supply to the load, then it can work.
