SPECIFICATIONS

Brand Name: qotom

Certification: CE

Graphics Card Type: Integrated Card

Hard Drive Capacity: 512GB

High-concerned chemical: None

Memory Capacity: 32 GB

Model Number: QOTOM-Q1000S

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: 4305U,5405U,Core I3 10110U

Processor Model: 4305U,5405U,Core I3 10110U

Products Status: Stock

Type: Mini Desktop,Mini PC

Use: Commercial

Dimension	155 x 127 x 48mm
Weight	0.85Kg
Power Consumption	15W
Onboard CPU	Q30912S:Intel Celeron 4305U, 2M Cache, 2.2GHz, 2 Cores. Fanless Q30921S:Intel Pentium 5405U, 2M Cache, 2.3GHz, 2 Cores. Fanless Q30952S:Intel Core i5 8265U, 6M Cache, 1.6GHz Up to 3.9GHz , 4 Cores. Fanless Q31011S:Intel Celeron 5205U, 2M Cache, 1.9GHz, 2 Cores. Fanless Q31031S:Intel Core i3 10110U, 4M Cache, 2.1GHz Up to 4.1GHz , 2 Cores.Fanless Q31051S:Intel Core i5 10210U, 6M Cache, 1.6GHz Up to 4.2GHz , 4 Cores.With Fan Q31073S:Intel Core i7 10710U, 12M Cache, 1.1GHz Up to 4.7GHz , 6 Cores. With Fan
Memory	1 x 2133/2400MHz DDR4 SO-DIMM Socket (Up to 32G)
Chipset	By CPU
Hard Disk	Support M key M.2 for SSD (2280mm) and 2.5 inch SATA SSD/HDD
Graphics	Intel® UHD Graphics for 8th Generation Intel® Processors
Onboard LAN	2 x Intel I225-V/I226-V 2.5 Gigabit LAN

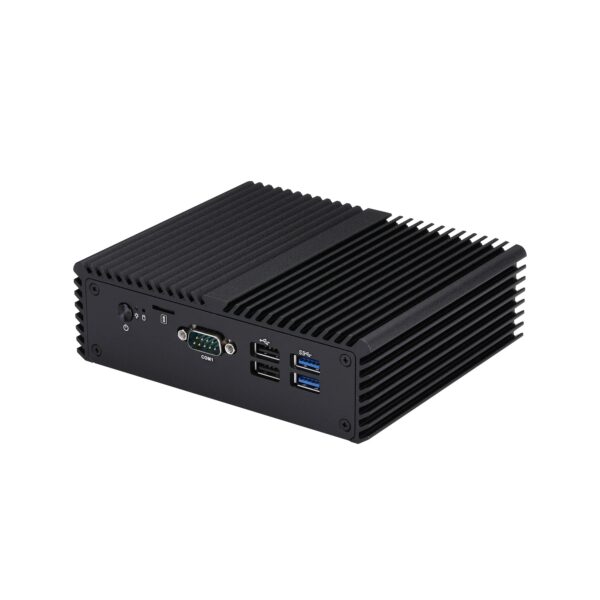

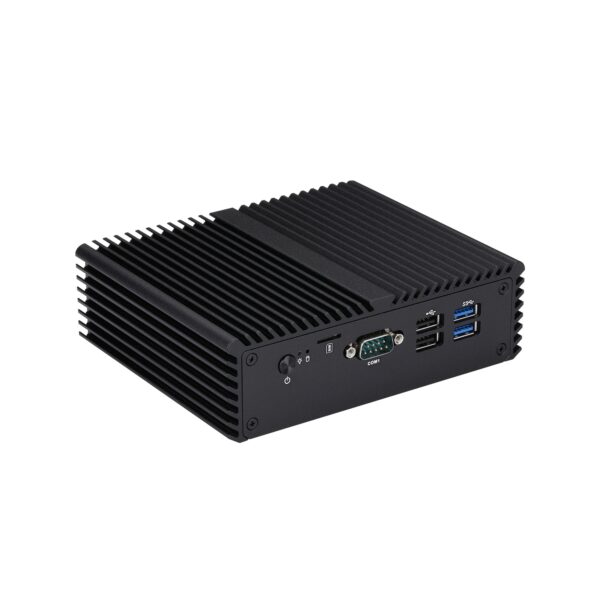

Front-Panel Connectors	• 1 x Power Button • 1 x Power LED, 1 x HDD LED • 2 x USB3.0 ,2 x USB2.0 • 1 x RS-232 Port

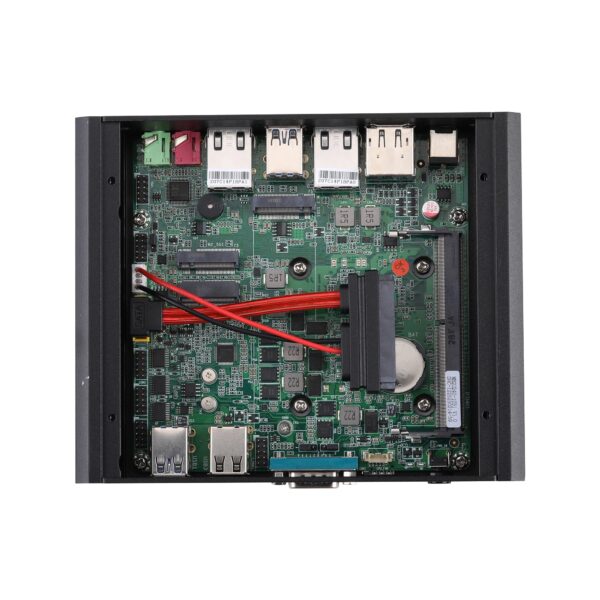

Internal Connectors	• 1 x M.2 for 4G/5G (B key, 3042/3052)4205U,5405U,5205U,5305U don’t support 5G function • 1 x M.2 for Wi-Fi (E key, 2230) • 1 x M.2 for SSD (M key, 2280) • 1 x GPIO 2.0 Pitch Header(Option) • 1 x Automatically Boot 2.54 Pitch Header • 1 x COMS Clear Jumper 2.54 Pitch Header

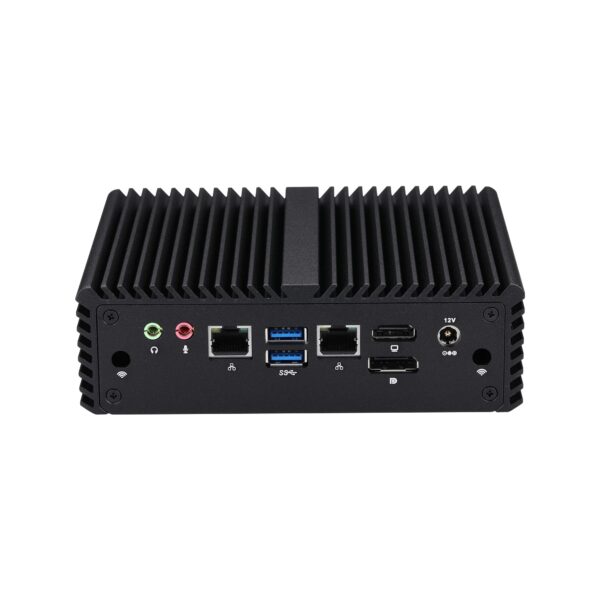

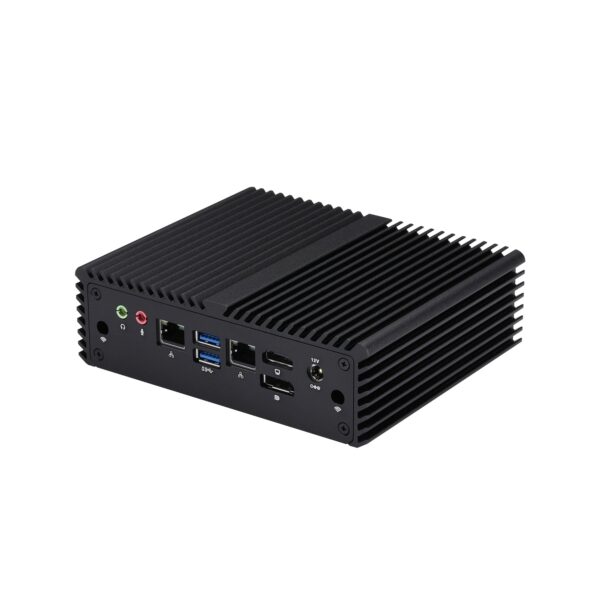

Back-Panel Connectors	• 1 x DC Jack • 1 x DP,1 x HD • 2 x RJ-45 Port for 2.5 Gigabit LAN • 2 x USB3.0 • 2(Mic-In, Line-out)
Operating System	Support Windows 10, LinuxAttention！！！The price of this link does not include Wifi. supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc. It will come with inactive Windows 10 Pro for test and you can reinstall OS by yourself. F11 key boot from USB Drive. Delete key enter BIOS. If you prefer to other OS, or need Wifi, please leave a message.

Mini pc can meet the below requirements

Put it under the television in the living room,It can play Network movie After connecting TV,Searching Internet and viewing photos,It also can download movies (Higher capacity hard disk optional).
Business office preferred,Such as E-shop,Online office use,Environmental protection and energy saving,Saves the electricity,The power consumption is more than 17W,Company production of enterprise office,Save a space.
Hotel rooms dedicated computer,Elegant appearance,High grade,it’s very convenient in the hotel,Solid state design,Unzerbrechlich, nonoise,Low power consumption,Energy-saving power.
Dedicated computer education and training industry that’s better performance than a PC,More convenient software compatibility and more colorful,Faster speed,it’s more suitable for students in computer education industry.
Industrial computer designed for industrial users reserve and serial port,The design of the machine,Can be fully competent for industrial applications,All solid state design,Completely mute design,Overall plate type design is balancing the needs of the industrial users.
Call center users,E-commerce office,Estate agents,All kinds of public window,Cloud services desktop virtualization platform connected to the computer terminal equipment,Task-oriented office workstations.
Other special computer:It can also be used as a remote media player,Advertising machine,All-in-one mini pc,POS machine Equipment of the main parts ect,Use of the secondary development into other products..
