SPECIFICATIONS

Accessories: Customizable

Applicable Industries: HOME USE

Brand Name: LANDWARD

Certification: CE,EPA,ISO

Color: Customizable

Condition: New

Core Components: ENGINE

Engine Brand: YANMAR

Engine model: YANMAR

High-concerned chemical: None

Key Selling Points: Multifunctional

Length * Width * Height: 4100*1500*2440mm

Logo: Customizable

Machinery Test Report: Provided

Optional: OEM ODM

Origin: Mainland China

Place Of Origin: CHINA

Power(W): 15.2KW

Rated Power: 21HP

Showroom Location: China Mainland

Transportation: Sea Freight LCL, FCL

Transportation method: DDP/EXW/FOB/CFR/CIF

Type: Crawler Tractor

Video outgoing-inspection: Provided

Warranty: 1.5 Years

Warranty of Core Components: 1.5 Years

Dear Buyer,

This is a customized product, and the price shown is not the final price. Additional costs will apply depending on whether it meets Euro 5 or EPA engine requirements (for European and American countries) and whether other configurations are needed, such as cab/boom swing, etc. We offer multiple delivery methods, including DDP, EXW, FOB, CFR, and CIF. Shipping costs will be calculated separately based on the delivery method.

We can customize colors, configurations, models, appearance, logos, engine types, and powertrains. Most importantly, you need to communicate with our customer service to confirm product parameters. Specific prices vary depending on country/region and customs

requirements; please contact customer service for consultation.Demi,Eddie,Jessie or Eric.

Click to follow the store

Fans of this store can consult customer service to enjoy extra discounts! You can get exquisite gifts when you purchase a certain amount! Please feel free to place an order and pay!

Return without reason within seven days! Enjoy customization and fast delivery! !

Welcome to LANDWARD Factory Store, We are a Professional Manufacturer of Excavators.

We support OEM & ODM service for any clients, even you only need 1 pcs.

Click on more different models to choose which is suitable for you, or contact us directly,

our sales will recommend most suitable excavator for you.

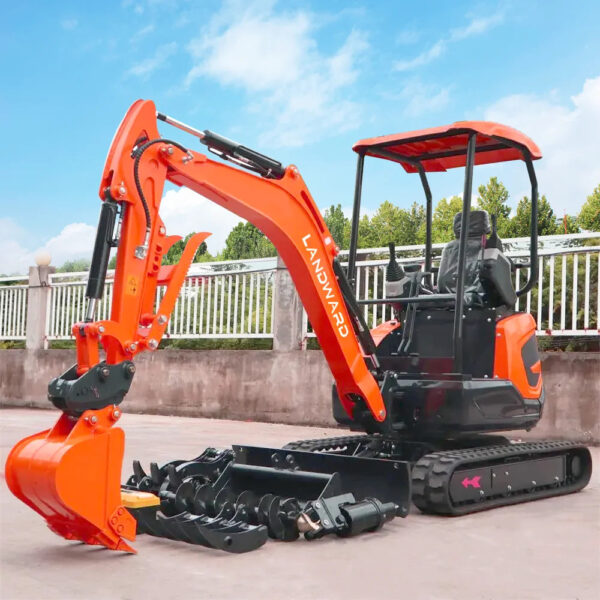

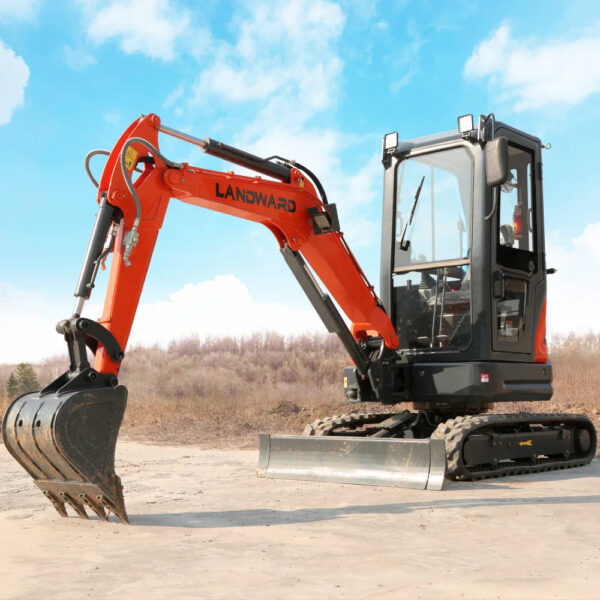

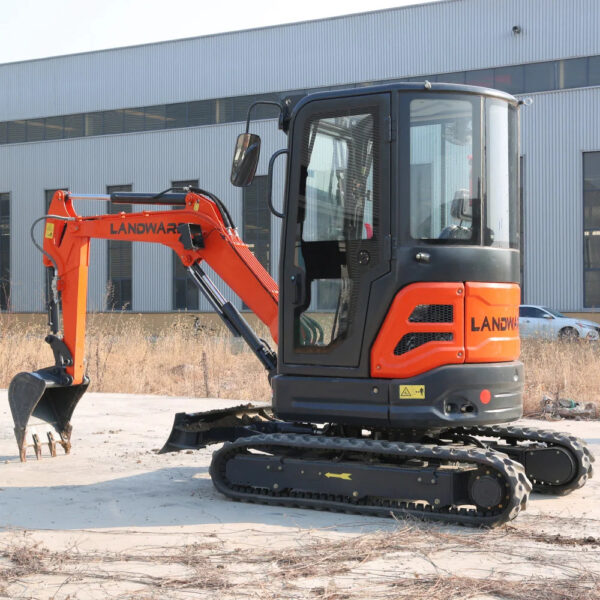

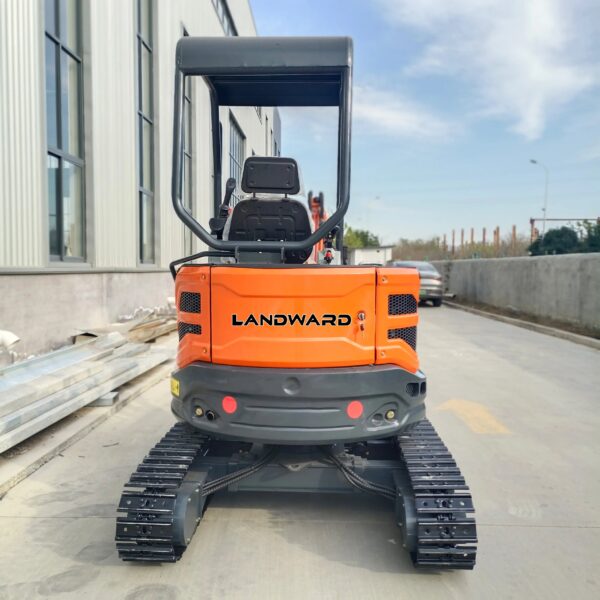

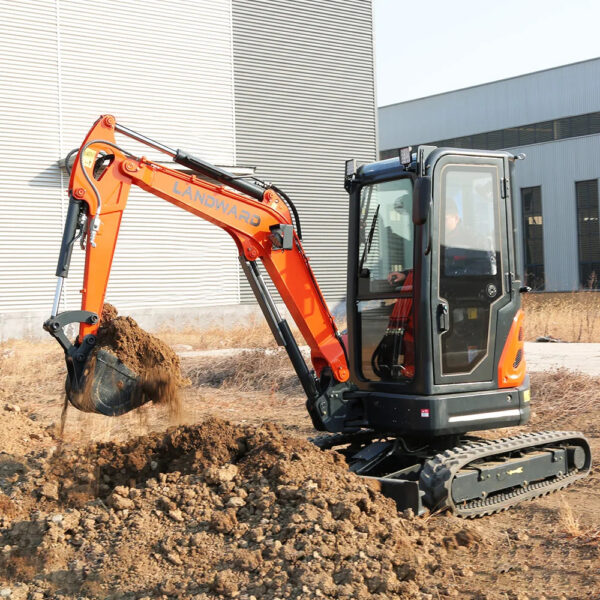

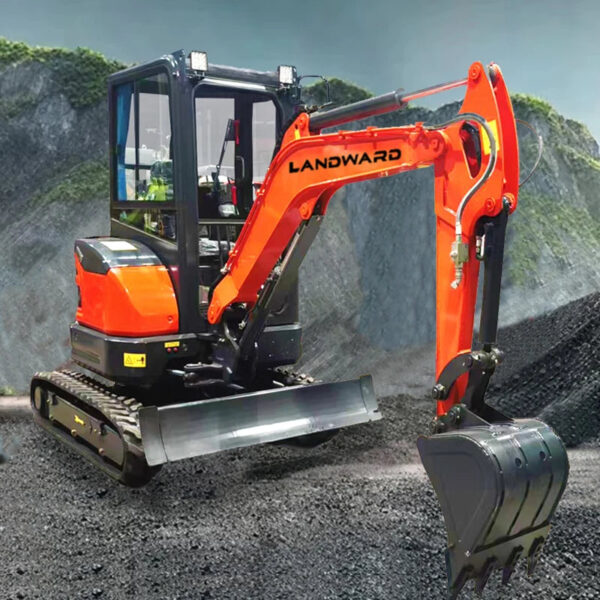

XT25U Mini Excavator
Machine weight (Kg)	2500
Rated bucket capacity (m³)	0.068
Engine brand	Yanmar
Engine model	3TNV80F
Rated power (kw)	15.2
Rated displacement (ml)	1267
Rated speed (r/min)	2500
Climbing angle °	57
Slewing speed (r/min)	9.5
Travel speed (km/h)	2-3.8
Steering control	Foot pedal control
Drive mode	Hydraulic drive
Travel motor type	Piston hydraulic motor
Service brake	Hydraulic brake
Parking brake	Hydraulic brake
Fuel tank capacity (L)	20
Hydraulic oil tank capacity (L)	18
Bucket digging force (KN)	20
Transport length (mm)	4100
Transport width (mm)	1500
Transport height (mm)	2440
Slewing radius (mm)	700
Track gauge (mm)	1070/1270
Maximum digging radius (mm)	4520
Maximum digging depth (mm)	2410
Maximum digging height (mm)	4190
Maximum unloading height (mm)	2880
Turntable ground clearance (mm)	490

Talk with our sales colleague, you will get exclusive one-to-one service and outlet sale priceAll price is based on FOB Qingdao, China, please consult our sales for more details if you need other delivery solutions.

Why Choose LANDWARD Mini Excavator?

The advantages of LANDWARD mini excavator include but are not limited to its compactness, flexibility, simple operation, convenient transportation, high working efficiency, high cost-effectiveness, wide adaptability, etc., and the accessories can be quickly replaced to meet different work needs, further improving the utilization rate of the machine. These advantages make the mini excavator an ideal choice for many occasions such as urban construction, gardening work, orchard management, etc.

Model	XT18U
Operating weight (kg)	1800
Bucket capacity (m3)	0.045
Engine model	Laidong 385 / Yanmar
Rated power	20kW/11.2kW
Volume of fuel tank (L)	12
Travel speed (km/h)	2
Swing speed(r/min)	12.3
Setting pressure (KPa)	20
Bucket digging force(kN)	7.5
Volume of hydraulic tank (L)	10
Overall length (mm)	2550
Overall width (mm)	1100
Overall height（to top of cab）(mm)	2200
Track length (mm)	1800
Track width (mm)	250
Max. digging height (mm)	2900
Max. dumping height (mm)	1950
Max. digging depth (mm)	1900
Max. digging reach (mm)	3227
Min. swing radius (mm)	840
Hydraulic oil radiator	Standard
Boom swing	Standard
Tracks extandable	990-1160mm,optional

XT35U Mini Excavator
Overall Machine Weight	3764KG
Bucket Capacity	0.11m³
Engine Model	Kubota 1703
Engine Power	18.5KW/2200rpm
Total Length(Transportation State)	4945mm
Full Width(Transportation State)	1700mm
Full Height(Transportation State)	2585mm
Number Of Supporting Wheels	Eight Pieces
Track Width	300mm
Counterweight Ground Clearance	595mm
Minimum Ground Clearance	270mm
Wheel Spacing	1750mm
Rotation Speed	12/rpm
Fuel Tank Capacity	40L
Hydraulic Tank Volume	41L
Overall Machine Pressure	22Mpa

Please note: All our mini excavators are to be customized, please contact our sales to confirm detail information before/after placing your order. You will be treated friendly and sincerely, and you will find that will be very helpful.

LANDWARD excavator models are complete. If you need other models not shown here, please click to find our professional sales staff to get more information and the best price. If you have any needs that we do not show here, please contact us for direct sales.

XT10K Mini Excavator
Operating Weight	1000KG
Bucket capacity	0.028mm³
Engine Model	changchai192/Koop192
Climbing ability	30°
Total transport length(mm)	2200mm
Travel Speed	4KM/H
Swing speed	10r/min
Digging height(mm)	2250mm
Digging depth(mm)	1650mm
Overall machine dimensions	2200*940*2250mm

What benefits can we bring to you

For consumers, our products are affordable and have a long service life. The product models range from 0.8 tons to 6 tons to meet any of your needs and support customization.

For suppliers, we will provide you with enough profit margins, and we will provide you with testing before leaving the factory to ensure product quality.

About LANDWARD Machinery

The history of LANDWARD development can be tracked back to 1997 as a small Auxiliary Factory(named Jimo Iron works in a small village) which taking the steel plate cutting.

In the early 21th century, Landward shifted towards expanding into new business to welding and produce structural parts for loader factories.

In 2009, Landward started the research and development of dumpers, and in the next year we began to produce forklifts. We were posed many challenges but also created opportunities for innovation and adaption.

In 2018, we engaged in small machine, like small excavators, mini dumpers, mini wood chippers at the time when the Euro market begin to accept Chinese mini machine.

On Jan.5, 2024, the company has been renamed to its current name-Landward(Shandong) HI Group, aimed at developing engineering equipment to the world.

Today, Landward continue to evolve in response to technology, globalization, and leading customers’ life forward. The development of artificial intelligence, renewable energy and e-commerce are shaping the future of Landward, creating new opportunities and challenges. We engaged on playing a vital role in driving the quality growth and improving customers’life easier.

Welcome dealers from the world for sharing a similar vision to generate value for the customers.

Great honor for us to have your interest in our small machine and hope you have a good time in our store. Thank you!
