UNI-T UT202F UT204R Digital Clamp Meter AC DC Current Amperometric Clamp Voltammeter True RMS Voltage Tester Frequency Meter
SPECIFICATIONS
AC current frequency: 50Hz-100Hz
AC voltage frequency: 10Hz-10kHz
Battery Included: No
Brand Name: UNI-T
CE Certified Version of UT204+: CE Certified Version of UT202A+
Certification: CE,RoHS
Choice: yes
DIY Supplies: Electrical
Digital ammeter: AC DC current pliers ammeter
Dimensions: 215mm x 63mm x 36mm
Display Type: Digital Only
Display count: 6000
Electric instruments: Voltmeter
High-concerned chemical: None

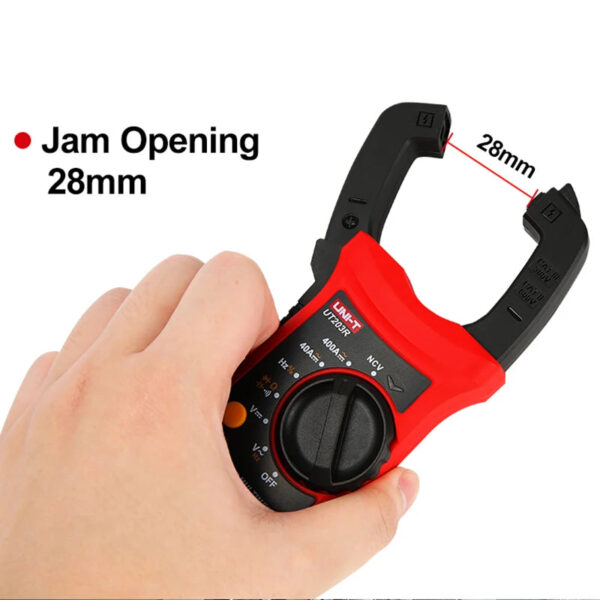

Jaw opening: 28mm
Measuring Capacitance Range: 60mF
Measuring Current Range: 0.06-600A
Measuring Resistance Range: 60MΩ

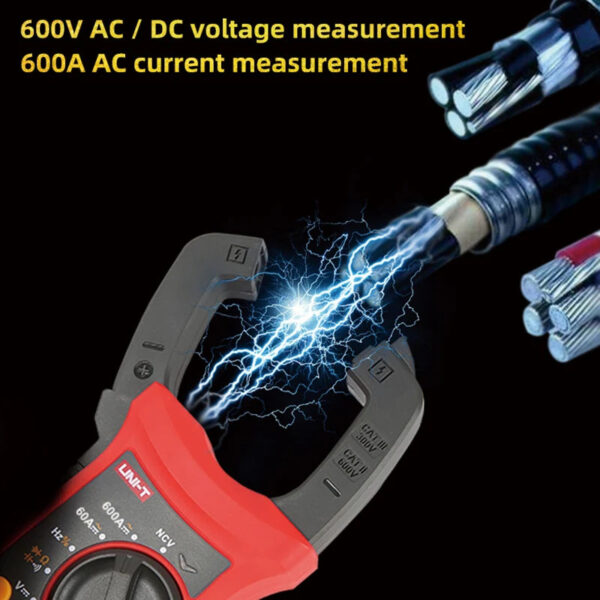

Measuring Voltage Range: 600V
Model Number: UT202F
Origin: Mainland China
UNI-T Model: UT204R
Weight: 420g
semi_Choice: yes

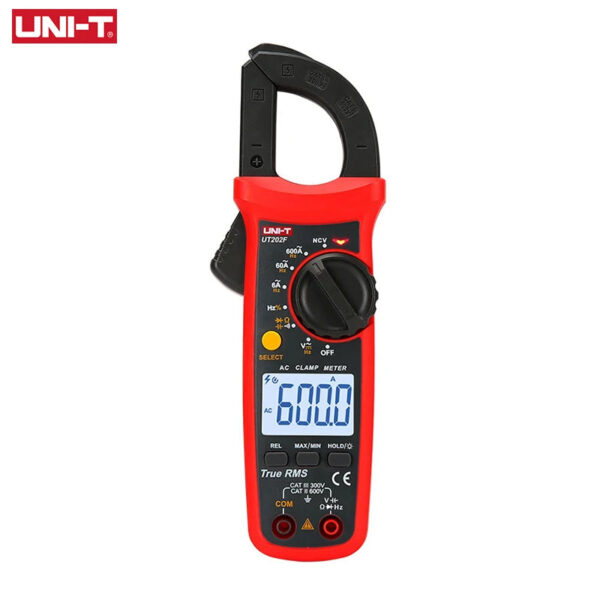

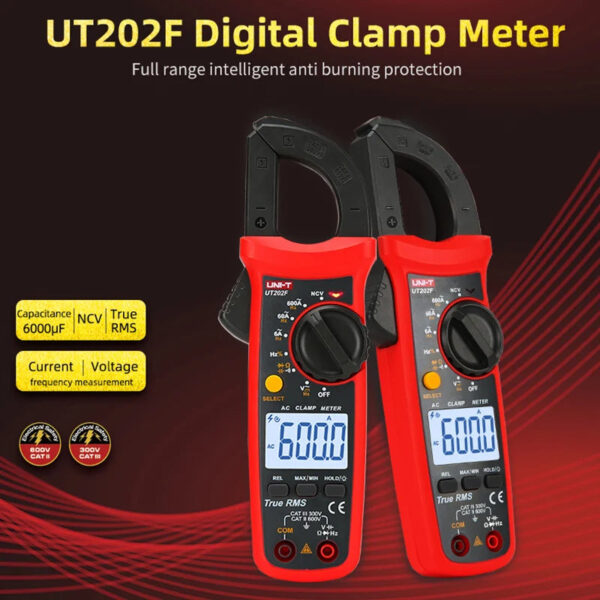

UT202F UT204R Digital Clamp Meter

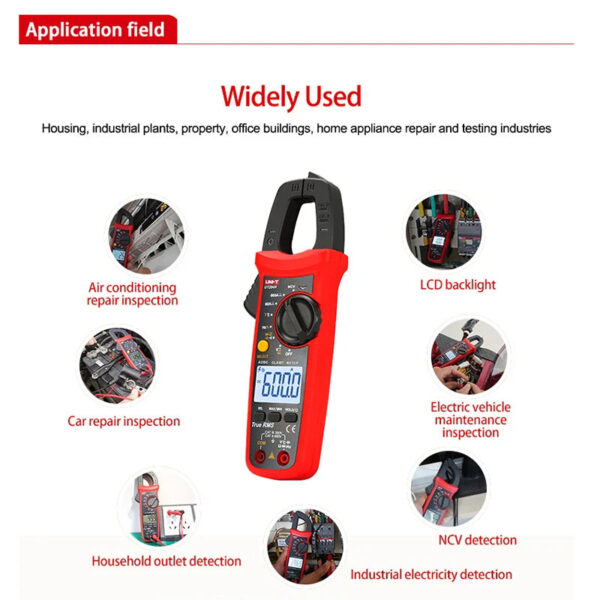

UT200R series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.
The upgraded version of UT204+ is UT204R. The upgraded version of UT202A+ is UT202F. Both models share identical functionality, with the distinction that UT202F and UT204R carry CE certification.
Features
1. True RMS
2. 60mF large capacitancemeasurement
3. Larger screen anddisplay digits
4. LCD backlight
5. Continuity test
6. High voltage (600V) frequencymeasurement
7. NCV multi-segment display andaudio/visual alarm
8. 600V protection across allrange
Parameter
|
Specifications |
Range |

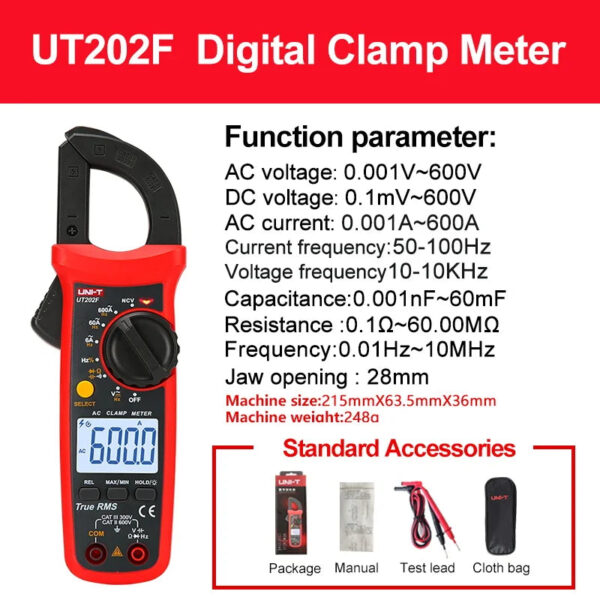

UT202F |

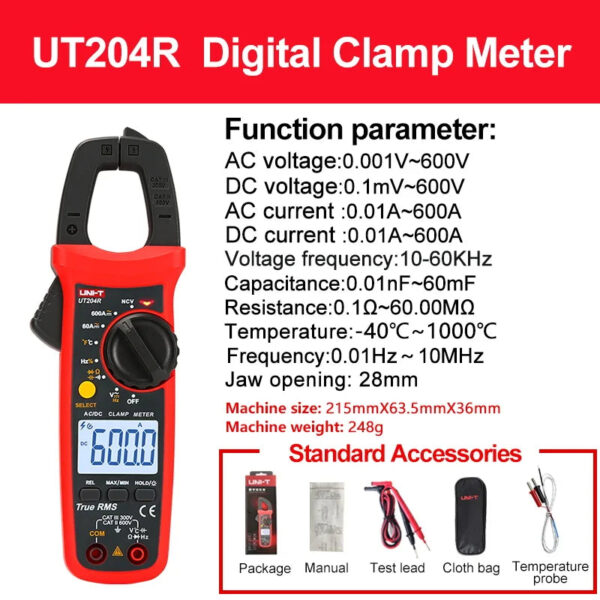

UT204R |
|
AC current (A) |
0.04~400A |
||
|
0.06~600A |
±(2%+10) |
±(2%+5) |
|
|
AC current frequency (Hz) |
50Hz~100Hz |
±(1%+5) |
|
|
DC current (A) |
0.04~400A |
||
|
0.06~600A |
±(2%+5) |
||
|
AC voltage (V) |
600V |
±(0.8%+5) |
±(0.8%+5) |
|
AC voltage frequency (Hz) |
10Hz~10kHz |
±(1%+5) |
|
|
10Hz~60kHz |
±(0.5%+2) |
||
|
DC voltage (V) |
600V |
±(0.5%+2) |
±(0.5%+2) |
|
Resistance (Ω) |
40MΩ |
||
|
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
|
|
Capacitance (F) |
4mF |
||
|
40mF |
|||
|
60mF |
±(4%+5) |
±(4%+5) |
|
|
Temperature (℃) |
-40℃~1000℃ |
±(1.5%+5) |
|
|
Frequency (Hz) |
10Hz~10MHz |
±(1%+5) |
±(0.1%+4) |
|
Features |
|||
|
Display count |
6000 |
6000 |
|
|

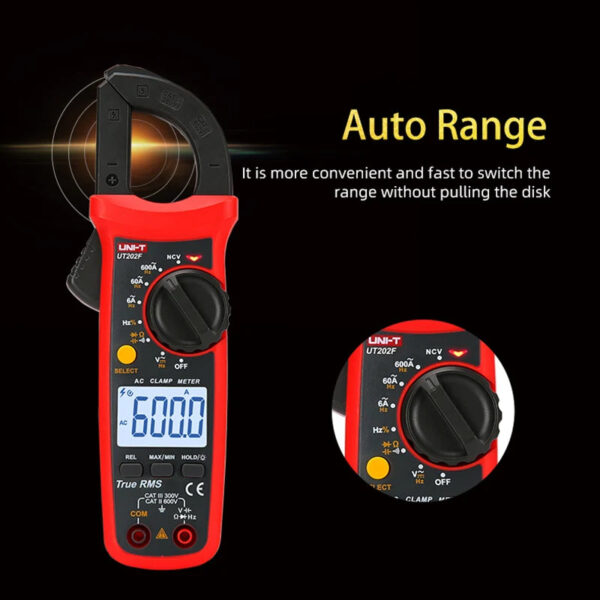

Auto range |
√ |
√ |
|
|
Jaw opening |
28mm |
28mm |
|
|
True RMS |
√ |
√ |
|
|
NCV |
√ |
√ |
|
|
Continuity test |
√ |
√ |
|
|
Diode |
√ |
√ |
|
|
MAX/MIN |
√ |
√ |
|
|
Relative mode |
√ |
√ |
|
|
Zero mode |
√ |
||
|
Data hold |
√ |
√ |
|
|
Low battery indication |
√ |
√ |
|
|
Auto power off |
√ |
√ |
|
|
General Characteristics |
|||
|
Power |
1.5V battery (R03) x 2 (No include) |
||
|
Display |
37mm x 25mm |
||
|
Product color |
Red and grey |
||
|
Product net weight |
UT202F: 248g; UT204R: 235g |
||
|
Product size |
215mm x 63mm x 36mm |
||
|
Standard accessories |
Test leads, Themocouple (Only UT204R) |
||
|
Standard individual packing |
Gift box, carrying bag, English manual |
||
Only UT204R has temperature measurement function.
Notice please: battery no include!
| Color | UT202F, UT204R |
|---|---|
| Ships From | China Mainland |
