Product introduction:

This series products belong to the latest generation of BSIDE brand Smart Digital multimeter!

The 3.5-inch large display design leaves an excellent user experience for buyers；The easy-to-use / Single Button to Switch design is well recognized by buyers；The ultra-thin body design is very portable.

Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as a gift.

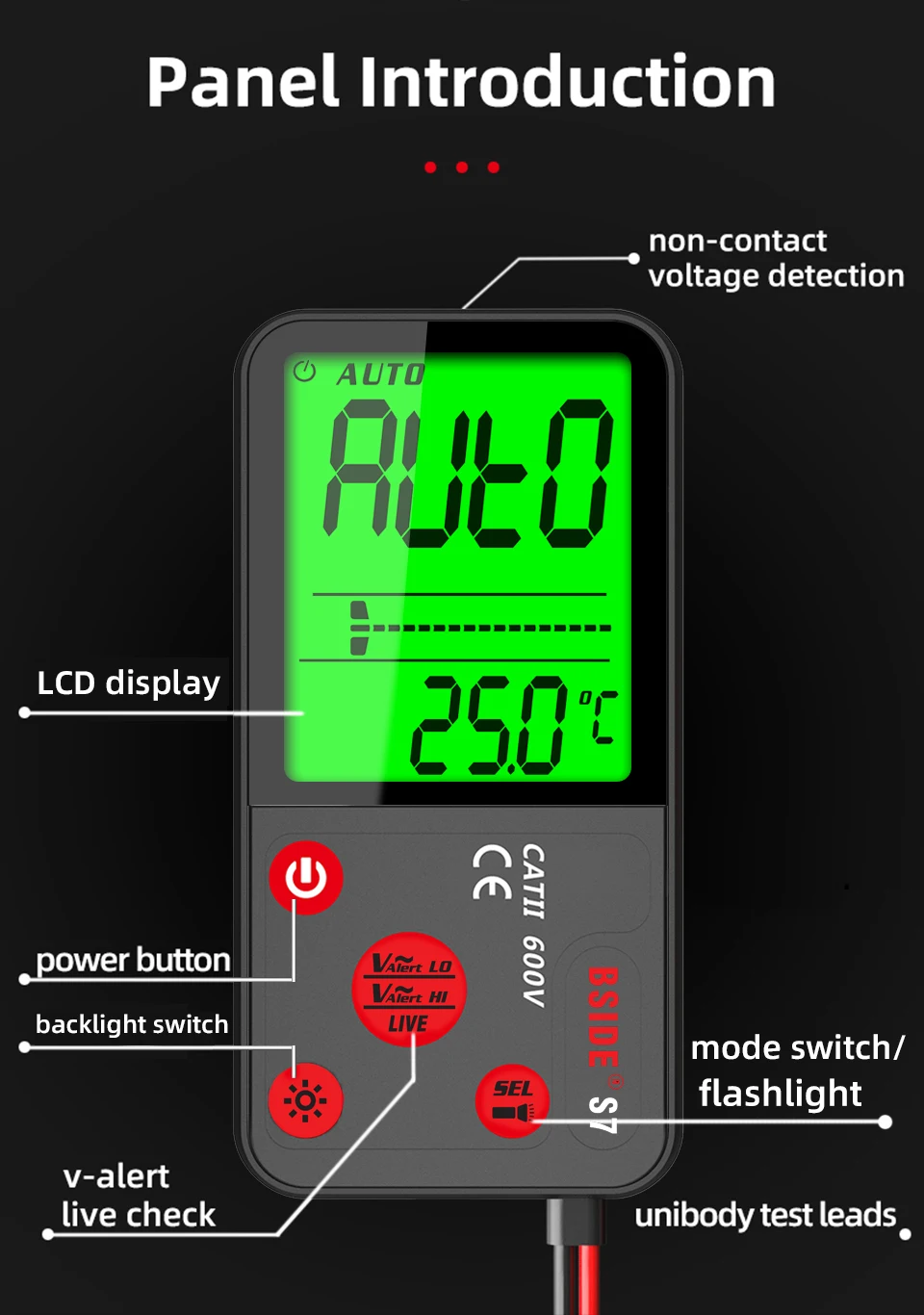

S7:LCD display;

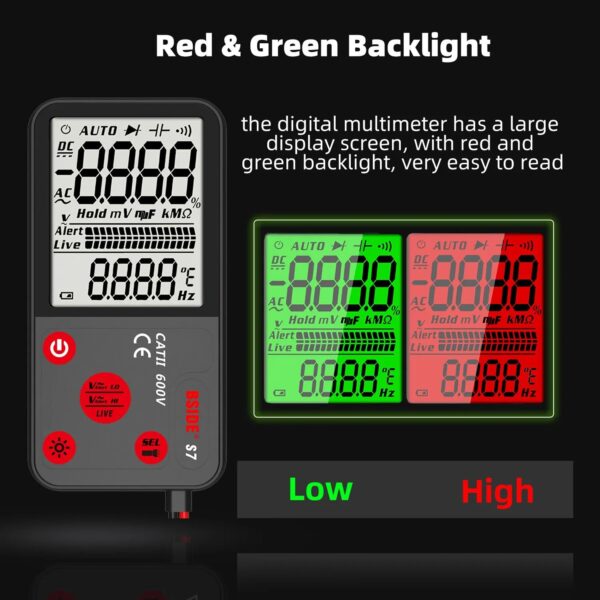

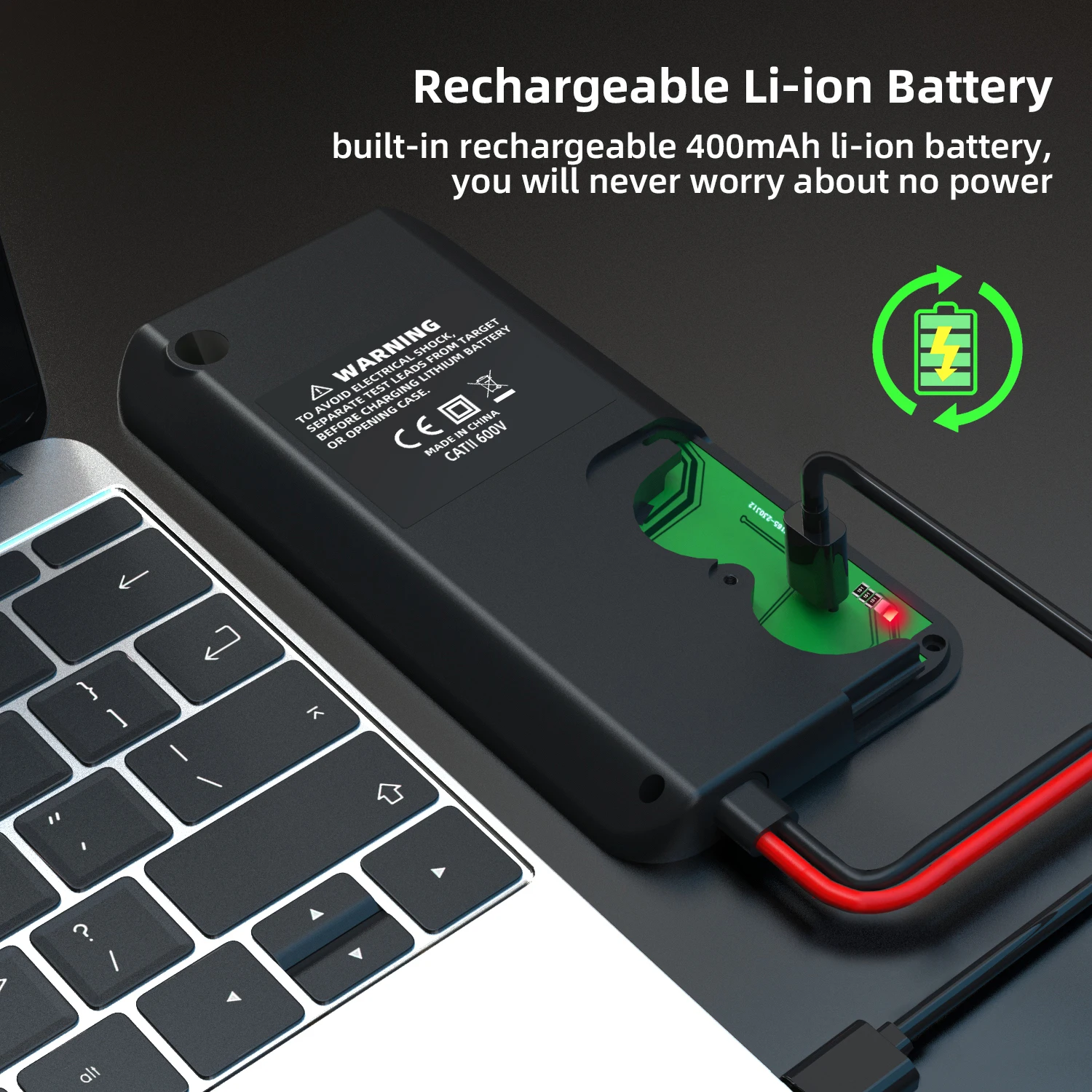

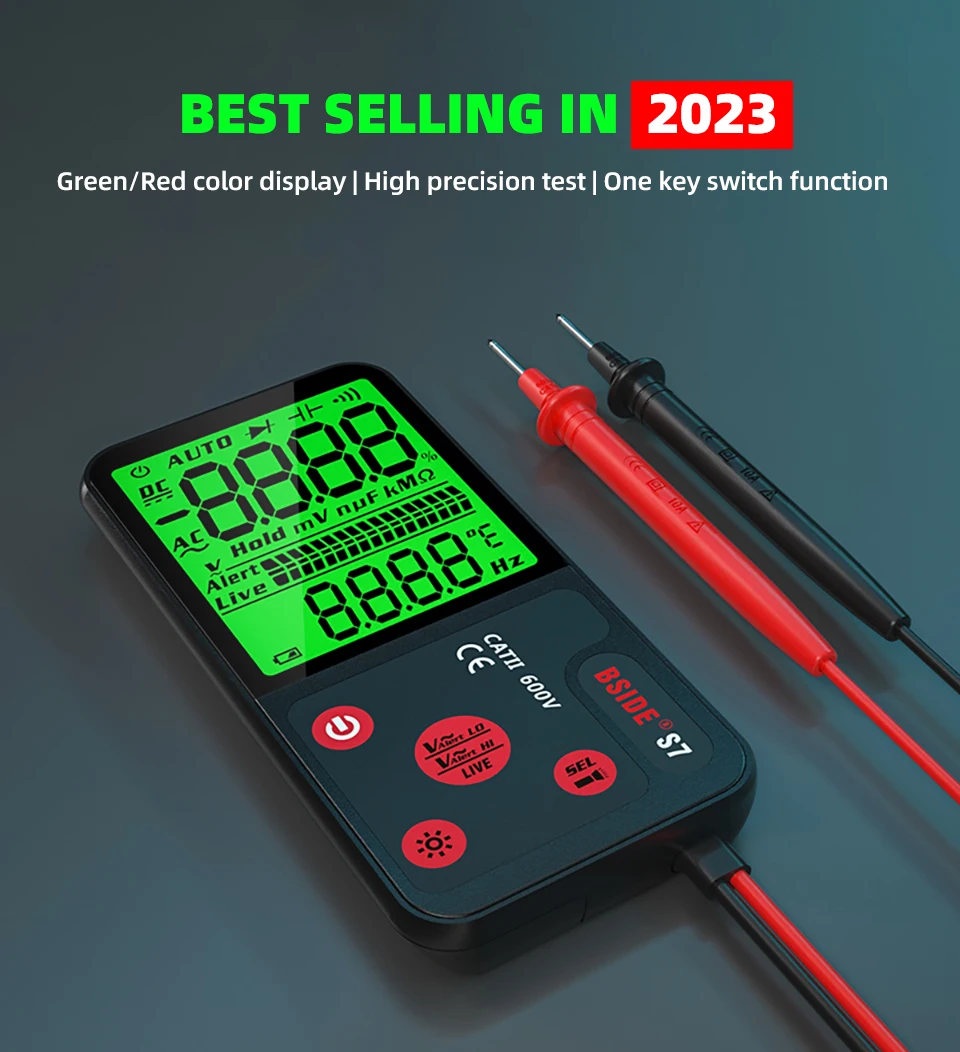

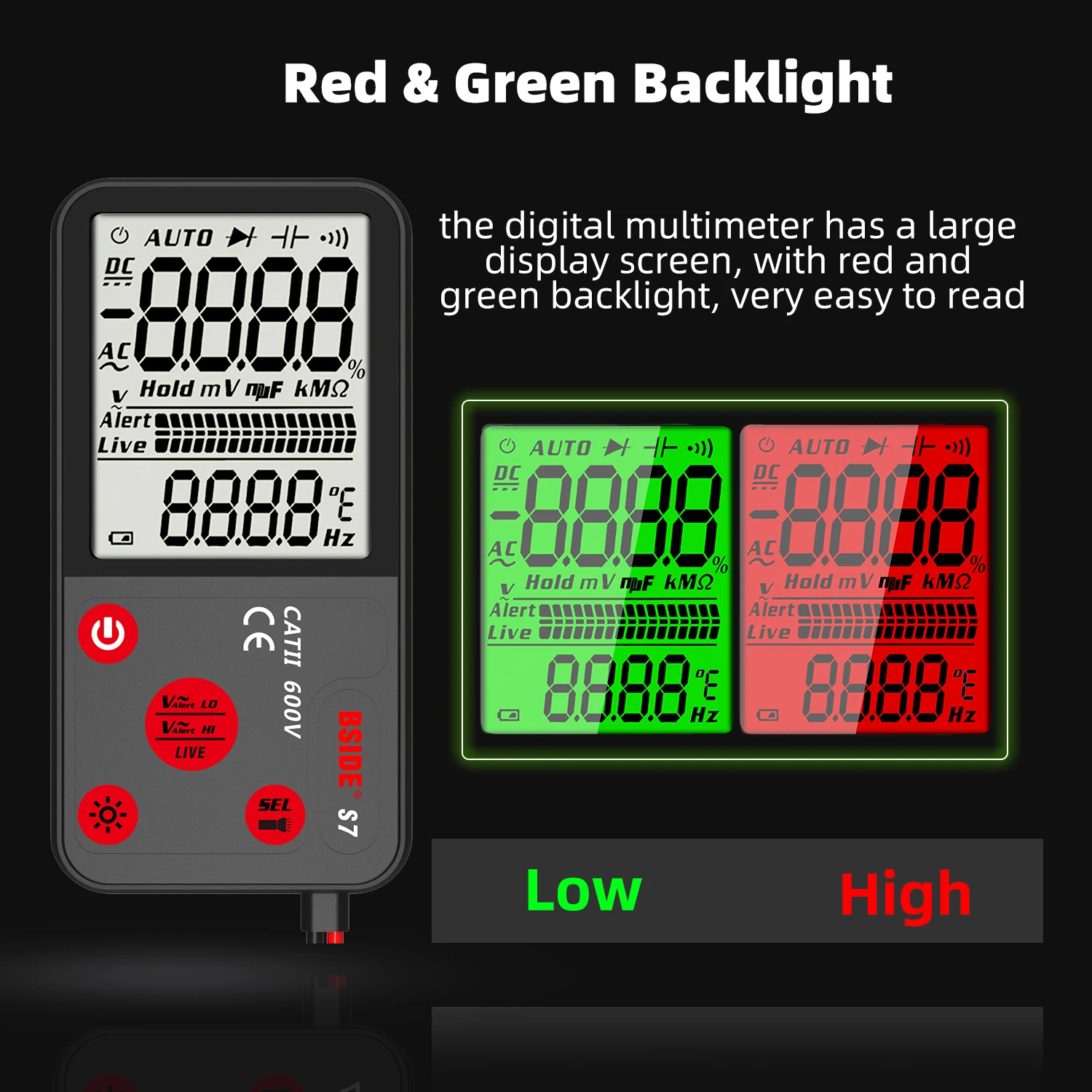

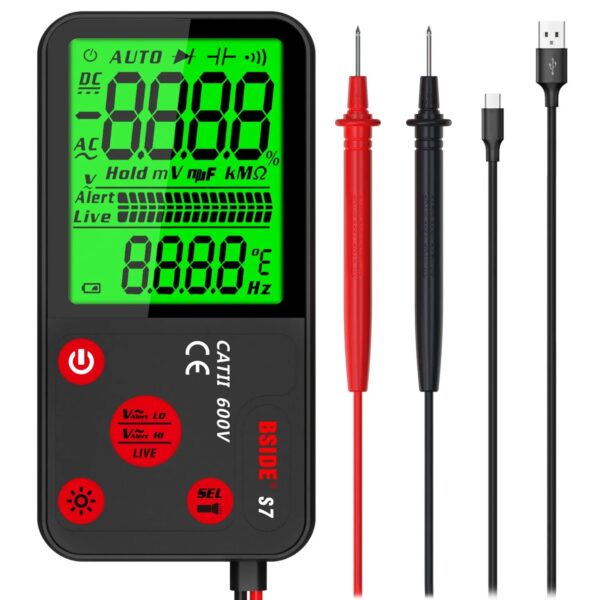

S7-USB charging:Red/Green display;Built-in 700mA lithium battery.

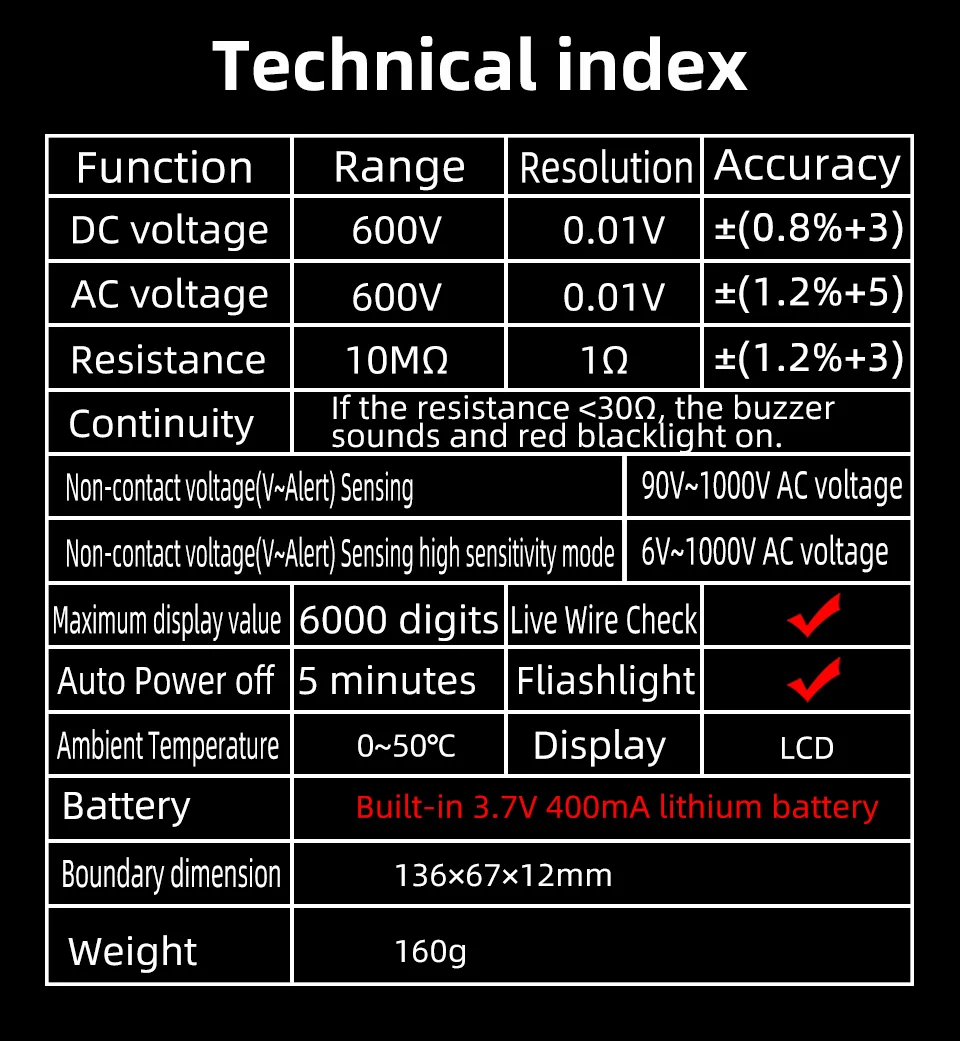

Specifications:

Display: 6000counts.

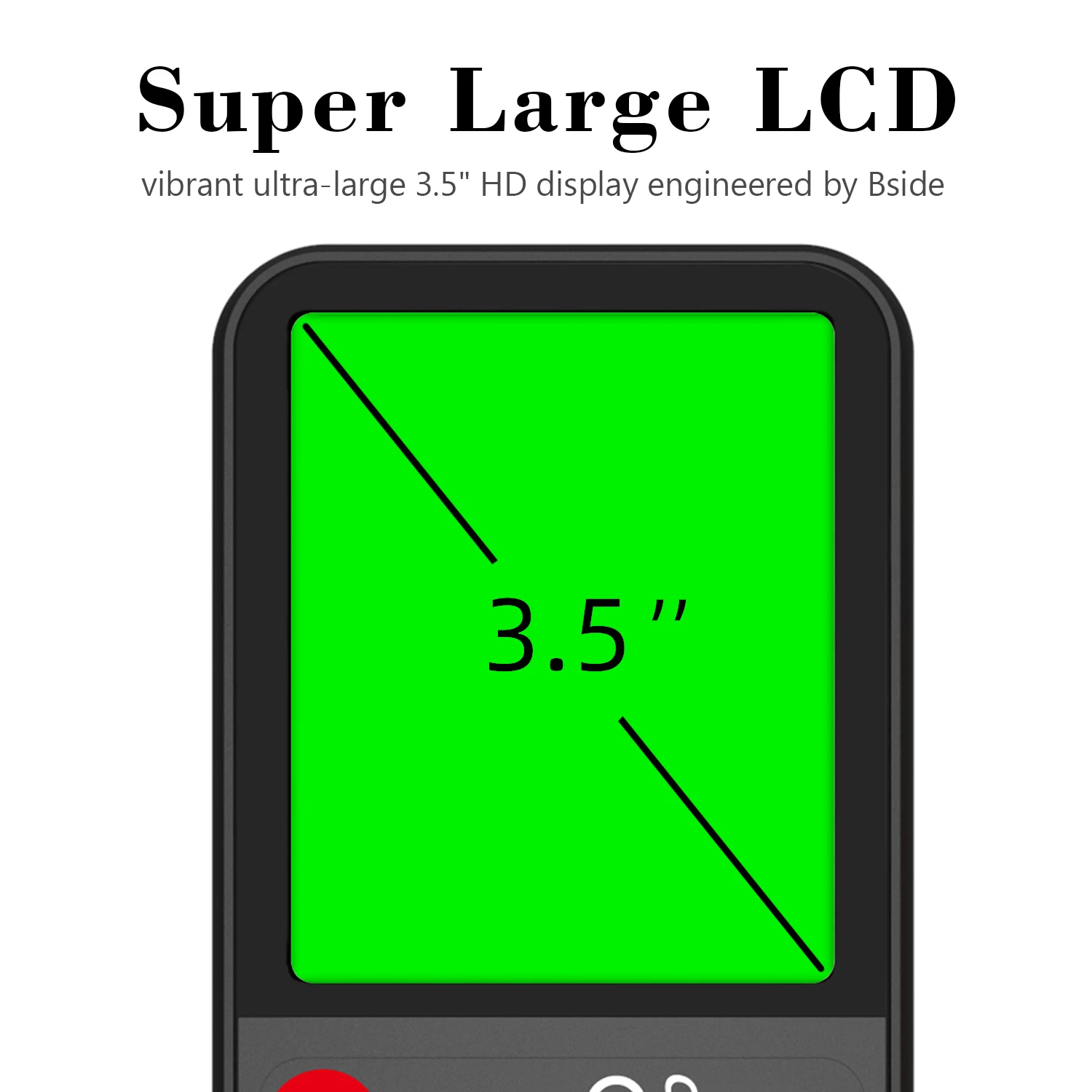

Screen: 3.5 inch.

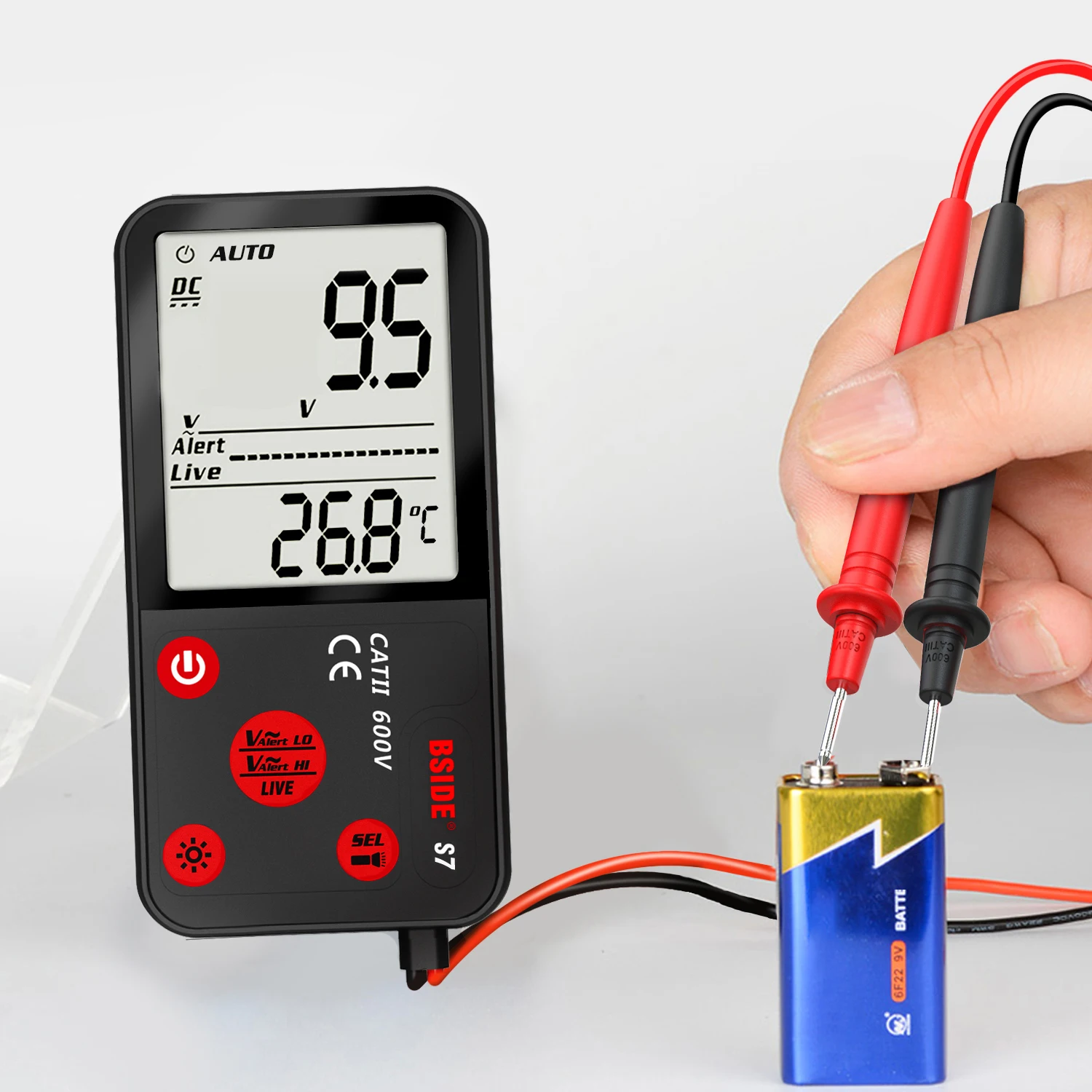

DC Voltage: 0~600V ±(0.8%+3); Resolution: 0.01V.

AC Voltage: 0~600V ±(1.2%+5); Resolution: 0.01V.

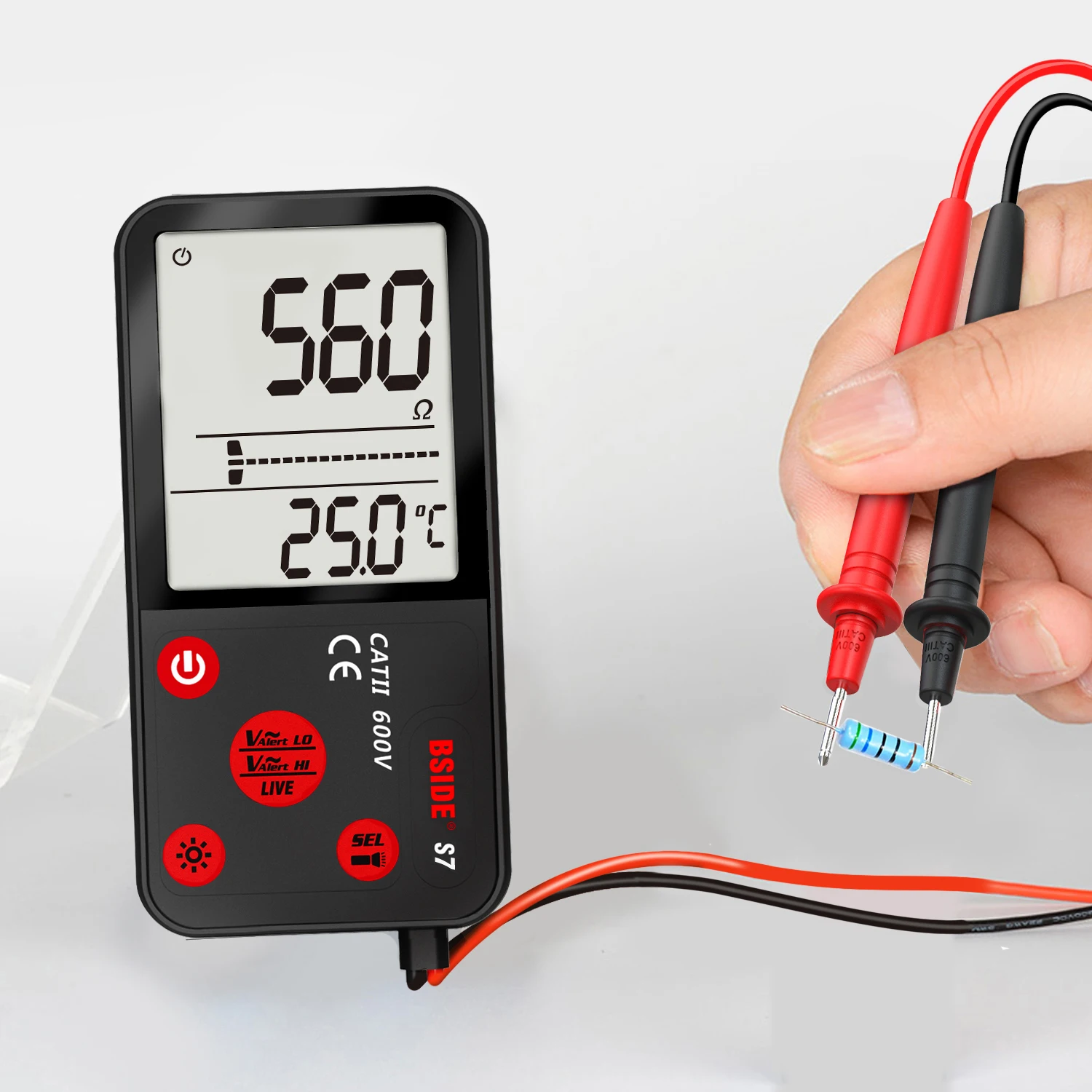

Resistance:1Ω-2000Ω ±(1.2%+5); 2000Ω-10MΩ ±(1.2%+3); Resolution: 1Ω.

Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V);
Resolution: 0.1Hz.

V-Alert(non-contact voltage detection): Yes.
Low sensitivity mode: 90~1000V（AC）
High sensitivity mode:6~1000V（AC）

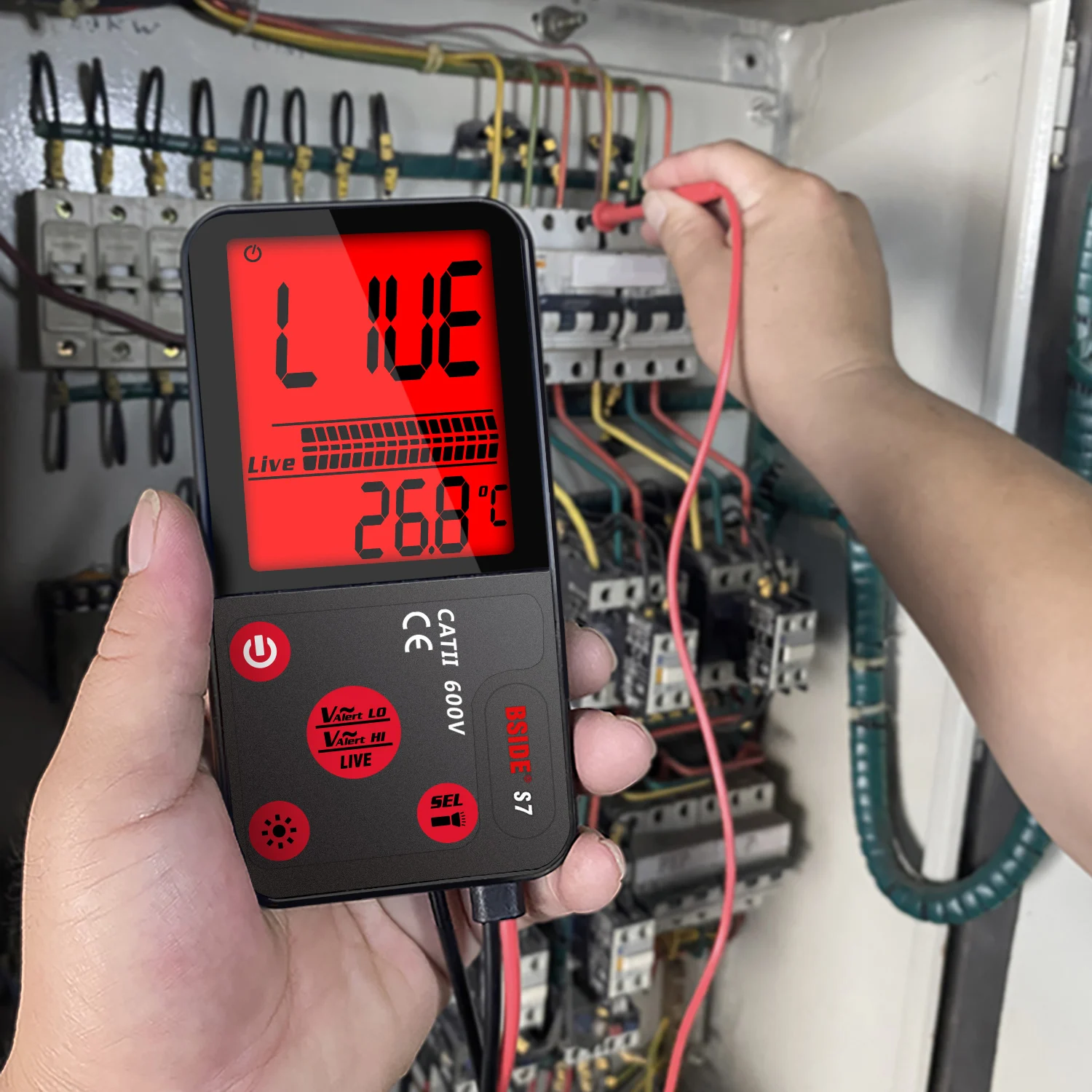

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

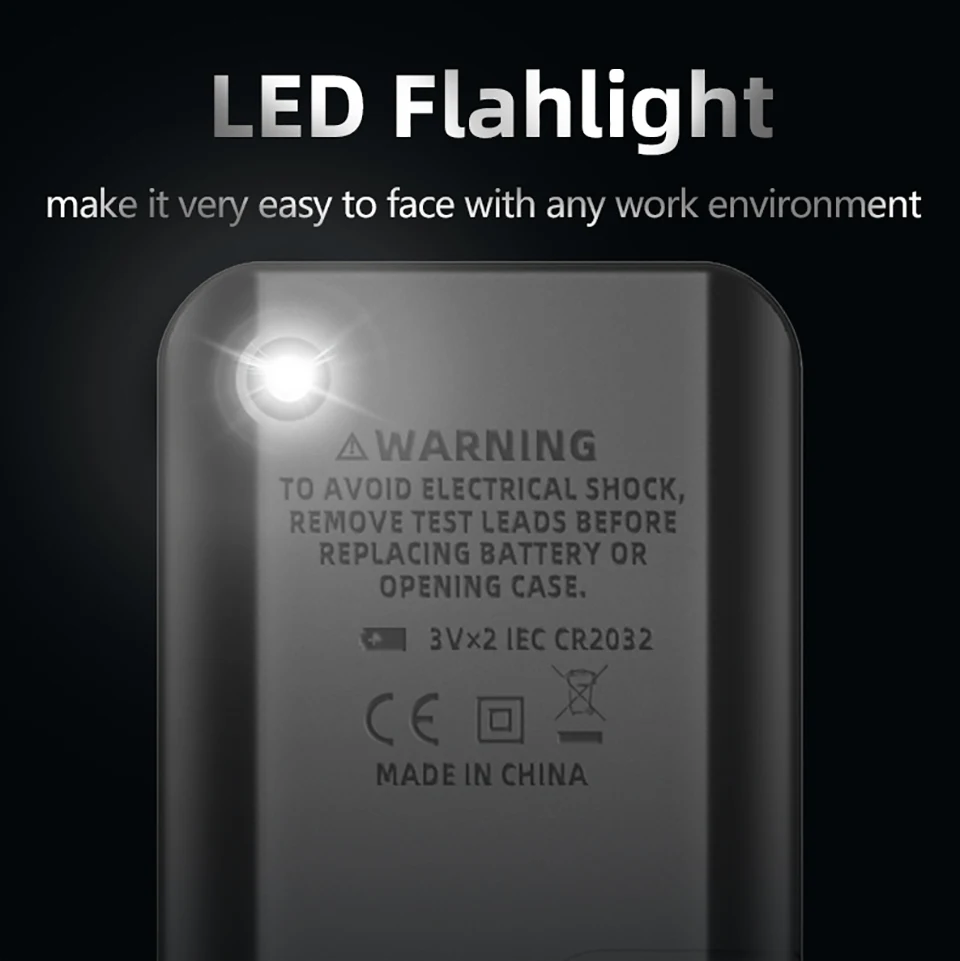

S7: C2302 x 2 (Built-in).

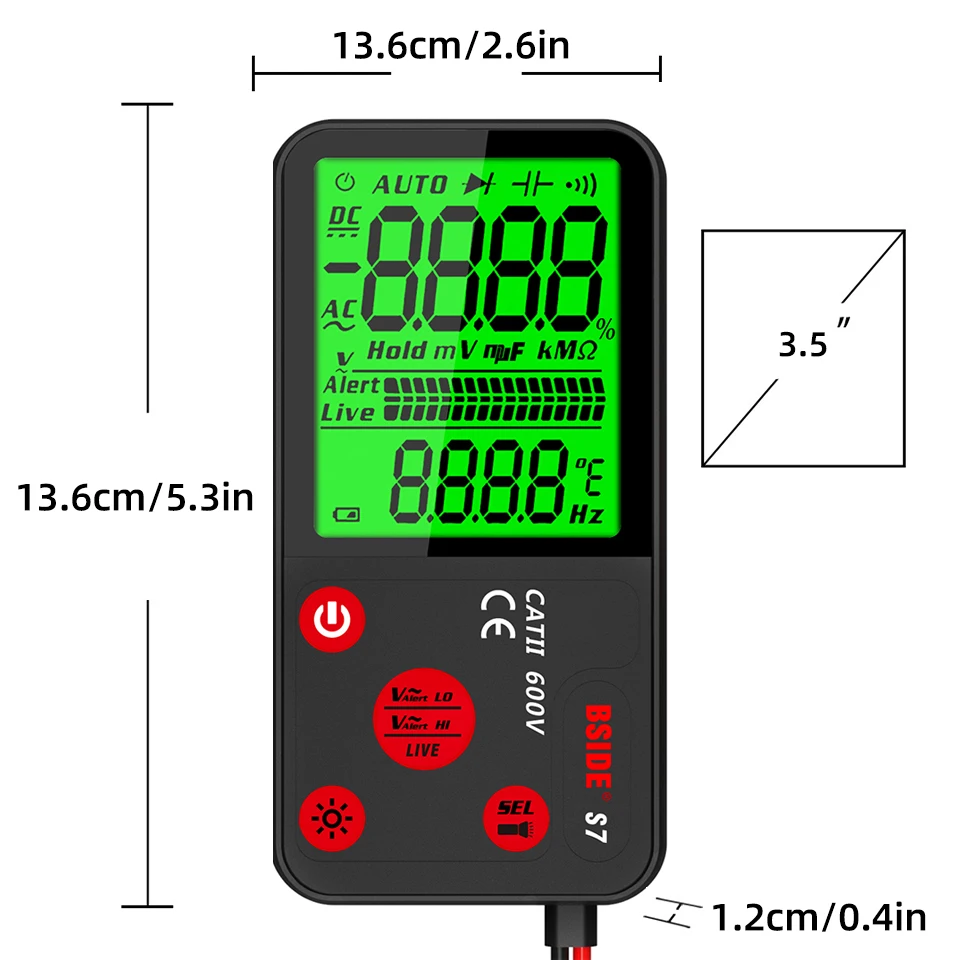

Size: 136*67*12mm.

Weight: 110g.
